2006 - 2010 Explorer 4.6L

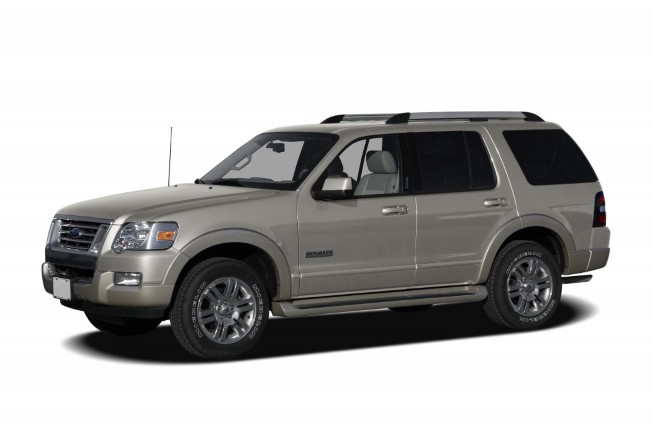

2006 Ford Explorer Specifications
General
| Basics | |
|---|---|
| Vehicle Type | 4dr SUV |
| BASE MSRP(US) | $29,425.00 |
| Warranty | 3 yr./ 36000 mi. |
| Power / Horsepower | 210 HP @ 5100 rpm |
| Torque | 254 ft-lb @ 3700 rpm |
| MPG (Economy) | 15 city / 21 highway |
| Curb Weight | 4,531 lbs |
| Engine: | |
| Engine Type | V-8 4.6L |
| Cylinders | 8 cylinders |
| Fuel Type | Gas |
| Valve Configuration | SOHC |
| Displacement (ci/cc) | 281 / 4600 |
| Power / Horsepower | 292 HP @ 5750 rpm |
| Torque | 300 ft-lb @ 3950 rpm |
| Engine Oil Capacity | 6 quarts |
| Recommended Oil | 5W-20 |
| Transmission: | |
| Transmission Type | 6-speed Automatic |
| Number Of Speeds | 6 |
| Wheels & Tires: | |
| Tire Size | P235/70R16 |
| Brakes: | |
| Front Brake Type | Dual Hydraulic Disc |
| Rear Brake Type | Dual Hydraulic Disc |
| Technical Specifications: | |
| Length | 193.4 in. |
| Fuel Capacity | 22.5 Gallons |
| Total Seating | 5 people |
| Drive Line: | |
| Driveline Type | optional 4X4 |
| Number Of Driveline Modes | optional 2 |
| Lights: | |
| Headlight Bulb | 9007 |
Dimensions
| Measurements: | |
|---|---|
| Overall Length | 193.4 inches |
| Overall Width | 73.7 inches |
| Overall Height | 72.8 inches |
| Wheelbase | 113.7 inches |
| Ground Clearance | 8.2 inches |
| Weights: | |
| Curb Weight | 4,531 lbs |
| Tongue Hitch Weight | 768 lbs |
| Max Towing Capacity | 3,230 lbs |
Chassis
| Suspension: | |
|---|---|
| Front Suspension Type | Independent SLA |
| Front Damper | Double Tube |
| Rear Suspension Type | Independent SLA |
| Rear Damper | Double Tube |
| Tires and Wheels: | |
| Front Tire Size | P235/70R16 |
| Rear Tire Size | P235/70R16 |
| Front Rim Size | 16" |
| Rear Rim Size | 16" |
| Brakes: | |
| Front Brake | Dual Hydraulic Disc |
| Rear Brake | Dual Hydraulic Disc |
| Fuel Tank: | |
| Fuel Tank Capacity | 22.5 Gallons |
| Fuel Type | Regular Unleaded Gasoline |
Engine
| Engine: | |
|---|---|
| Cylinder Arrangement | V-8 |
| Displacement | 281 ci / 4,600 cc |
| Compression Ratio | 9.8 : 1 |
| Power / Horsepower | 292 HP @ 5750 rpm |
| Torque | 300 ft-lb @ 3950 rpm |
| Valve Train | SOHC |
| Number of Valves | 16 |
Drivetrain
| Transmission: | |
|---|---|
| Transmission Type | 6-Speed Automatic |
| Gear Ratios: 1st | 4.17:1 |
| 2nd | 2.34:1 |
| 3rd | 1.52:1 |
| 4th | 1.00:1 |
| 5th | 0.86:1 |
| 6th | 0.69:1 |
| Reverse | 3.40:1 |
